HHO light vehicle HS 2000 Pro kit
Hydrogen System 2000 Pro kit – Save fuel and reduce emissions of your vehicle.
Suitable for petrol engines of from 1000cc to 2500cc displacement with a 12V charging system.
The kit provides a dry cell HSG 2000 HHO generator and Dynamic PWM to optimise performance.
The black anodised steel case is an optional extra; ideally the kit components fit in the vehicle's engine bay.
The HS 2000 Pro kit can be fitted to petrol-injection engines of less than 25000cc displacement to produce HHO gas without engine modifications or tampering with the fuel management or electrical systems.
There is no requirement for computer software, programming or set-up, timing or mixture adjustments to the vehicle.
Fuel-saving systems have built-in automatic start, stop and safety shutdown control with the included Dynamic PWM (pulse-width modulation) unit.
Features:
Compact, easy to install
High-quality components
Ampere limiter built-in
No run-on after shutdown
No backfire problems
Adjustable power ranges
Water level sensor
Fully automated

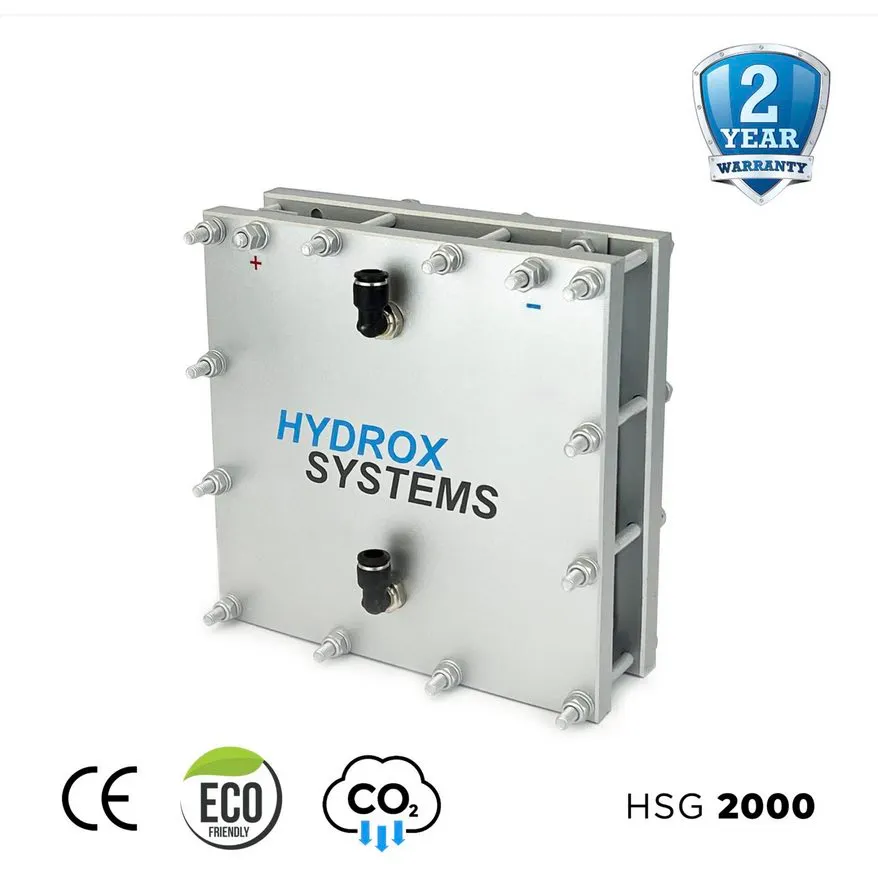

Technical Data of the HHO Generator
Dimensions of the HHO dry cell: 19cm x 19cm x 20cm
(incl. the connectors)
Voltage: 12 – 14.4 VDC (from vehicle's battery)
Material: steel INOX 316L SS
Configuration of the plates: + NNNNN –
(+ positive, N-neutral, – negative)
Amperage: 3 to 30A
Working surface: 2028 sq. cm
Capacity: up to 120 litres of gas per hour
Required ratio of the electrolyte (water to KOH): 5%-15%
Hose connectors: push-in type
Dynamic PWM: This controls the amperes and production of HHO gas according to engine RPM.

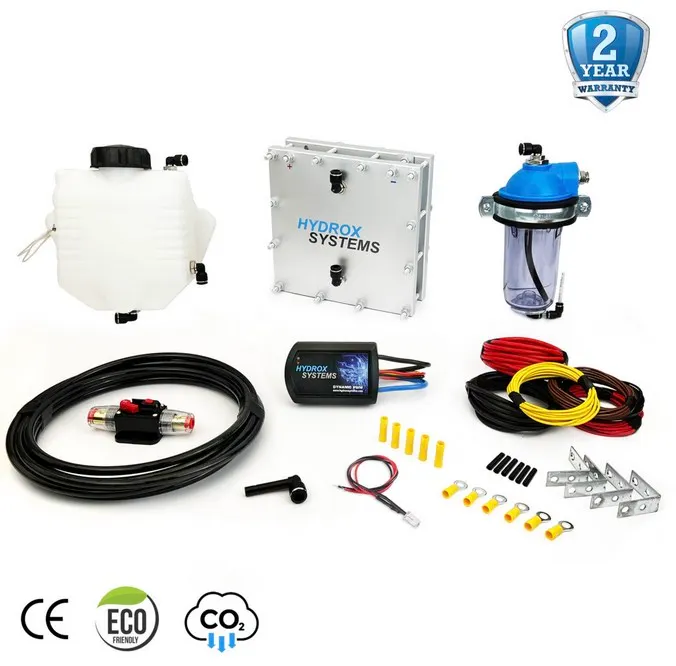

1 x HHO Dry cell
1 x HHO tank/reservoir 1.4 litre
1 x HHO bubbler
Tubing – 4m.
Wires:
Red 6 sq.mm. – 3.00m
Black 6 sq.mm. – 2.00m
Blue 1.5 sq.mm. – 3.00m
1 x fuse and fuse holder – 30 amps
1 x inlet gas connector
All electrical connectors
Installation instruction + scheme
Instructions for use
